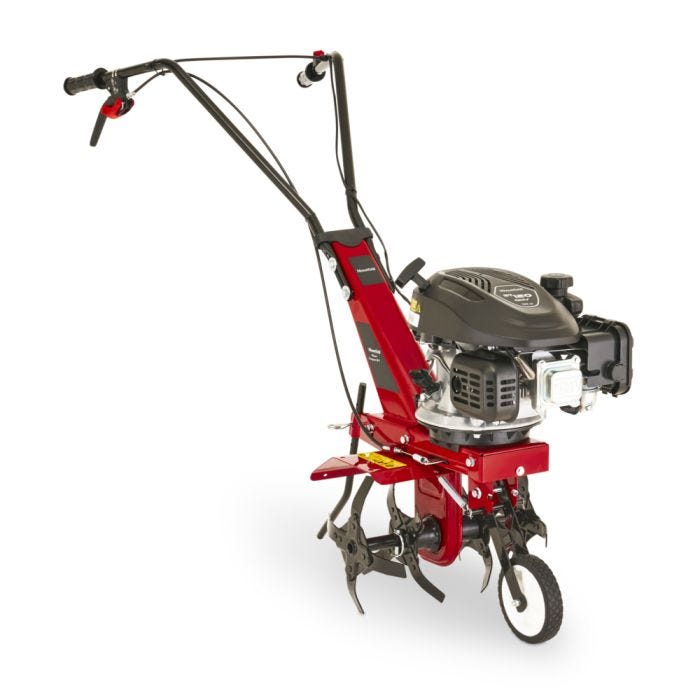

MANOR COMPACT 36 V

Petrol rotary tiller

The Manor Compact 36V takes all the hard work out of preparing your veg patch or new flower beds. Forget the spade and let the cultivator take the strain. Powered by STIGA ST120 OHV petrol engine, it will make light work of compacted soil in readiness for your seeds and little seedlings.

Powered by STIGA with an ST120 OHV 123cc engine
36cm working width
4 rotors with working depth 20cm
Rotor diameter - 24.5cm
Pressed Steel body
27kg – Total weight

SALE

Special Price £289.00 Regular Price £314.00 Your Saving: -£25.00

Vat Included

Product details and specs

The Manor Compact 36V is a sturdy machine. Powered by STIGA, ST120 OHV engine with a capacity of 123cc, the working width is 36cm resulting in only needing a few passes to cultivate a large area of soil.
The body is made from pressed steel and with a total weight of 27kg, it is a joy to work with. It really will help clear complete allotments in a blink of an eye, allowing you plenty of time to sort out the rest of your garden and relax in a deckchair watching your carrot seeds grow.

For advice on the garden tool best suited to your requirements please call our Technical Helpline on 0800 669 6325 or contact your local Mountfield Dealer who will be happy to advise you.

What's in the box

MANOR COMPACT 36 V

Petrol rotary tiller

Spare parts kit

Technical specs

General info

EAN/UPC

8008984834057

SKU

211360043/M20

Power

Power source

Petrol 4-stroke

Power

1.9 kW

Engine Brand

STIGA

Engine model

ST 120 OHV Autochoke

Displacement

123 cm³

Engine rotation speed

2900 rpm

Maximum engine speed

3200 rpm

Fuel tank capacity

0.8 l

Gear case oil capacity

0.45 l

Air filter type

Sponge

Maximum working area

0 ㎡

Working system

Working width

36 cm

Rotors number

Rotors diameter

245 mm

Transmission

Transmission type

Worm and gear in oil bath + belt

Number of gears

1 forward

Equipment

Wheel type

Plastic + Rubber

Transport wheels

1 front wheel

Soft grip handle

Yes

Vibration and noise data

Guaranteed sound power level (LwA) - dB(A)

Vibration level left handle (m/s2)

4.5

Vibration level right handle (m/s2)

4.5

Measured sound power level dB(A)

Measured sound pressure level at operator ear dB(A)

Overall dimensions

Pack weight

31 kg

Product length

1140 mm

Product width

360 mm

Product height

950 mm

Weight

27 kg

Manuals

Reach Informations

Information on Article 33 of REACH Regulation concerning STIGA Group products. Discover more

Reach Informations

MANOR COMPACT 36 V

Component	Component description	Substance/s	CAS number
211360043/M20	MANOR COMPACT 36 V TILLER MOUNTFIELD	Stop switch: 271660077-0001 I ) 4,4'-isopropylidenediphenol(bisphenlo A) II) Diarsenic pentaoxide III) Diarsenic trioxide IV) Triethyl arsenate V) Arsenci acid VI) Calcium arsenate Clutch cable: 320240402-0001 VII) Alkanes,C10-13,chloro(Short Chain Chlorinated Paraffins) Wire clip: 380940454-0001 VIII) 4-(1,1,3,3-tetramethylbutyl)phenol,ethoxylated Hand grip: 320180242-0001 IX) Alkanes,C10-13,chloro(Short Chain Chlorinated Paraffins) Carburetor: 170022125-0001 X) Diarsenic pentaoxide XI) Lead Fuel tube: 380750633-0001 XII) Alkanes,C10-13,chloro(Short Chain Chlorinated Paraffins) Flywheel comp.: 270020269-0001 XIII) 4,4`-Diaminodiphenylmethane(MDA) XIV) Formaldehyde,oligomeric reaction products with aniline	I) 80-05-7 II) 1303-28-2 III) 1327-53-3 IV) 15606-95-8 V) 7778-39-4 VI) 7778-44-1 VII) 85535-84-8 VIII) 140-66-9 IX) 85535-84-8 X) 1303-28-2 XI) 7439-92-1 XII) 85535-84-8 XIII) 101-77-9 XIV) 25214-70-4
